The smart solar and power lithium battery guide helps homeowners in Bangladesh understand the ZetaTech 51.2V 314AH lithium battery, a high‑performance LiFePO4 solution for solar storage. This article explains what the battery does, how it fits into solar systems, and what to consider before purchase and installation.
smart solar and power lithium battery guide

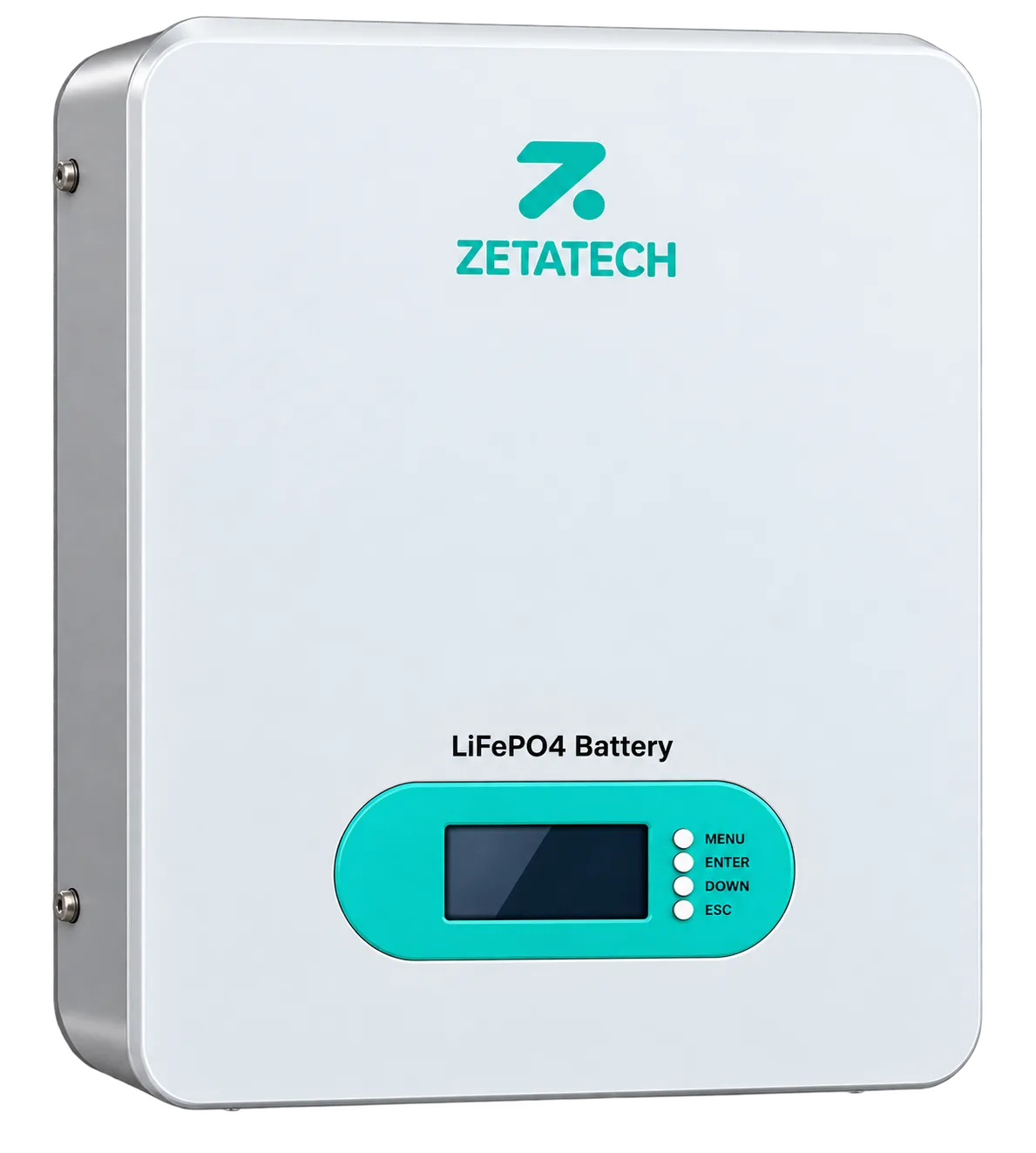

ZetaTech Lithium Battery 51.2V 314AH (স্মার্ট সোলার অ্যান্ড পাওয়ার) is designed for residential and small‑commercial solar projects. With a nominal voltage of 51.2 V and a nominal capacity of 314 Ah, it stores roughly 10.24 kWh of energy. The battery delivers a 5‑year (60 months) warranty and can endure up to 6,000 charge‑discharge cycles under standard conditions, making it a long‑lasting component of any solar setup.
Why LiFePO4 matters for Bangladeshi solar
LiFePO4 chemistry offers several advantages over traditional lead‑acid or other lithium types. It provides superior thermal stability, a wide operating temperature range (‑18 °C to +53 °C for discharge), and a low self‑discharge rate. Natural cooling keeps the pack safe without active fans, which is useful in humid tropical climates.
Key technical specifications
- Battery Type: LFP (LiFePO4)
- Nominal Voltage: 51.2 V
- Nominal Capacity: 314 Ah
- Nominal Energy: 10.24 kWh
- Voltage Range: 43.2 V – 58 V
- Maximum Charge/Discharge Current: 100 A
- Cycle Life: 6,000 cycles (25 °C ± 2 °C, 0.5C/0.5C, 90 % DOD)
- Depth of Discharge (Recommended): 90 %
- Thermal Management: Natural cooling
- IP Rating: IP20
- Dimensions (W×L×H): 485.6 mm × 468 mm × 237 mm (±1.2 mm)
- Weight: 90 kg ± 5 kg
- Communication Port: CAN / RS485
- Certifications: CE, IEC 62619, UN38.3
Integrating the battery into a solar system
When pairing the ZetaTech battery with solar panels, the most common configurations are off‑grid, on‑grid with battery backup, or hybrid systems. The battery’s voltage range matches well with typical 48 V solar inverters used in Bangladesh. Its maximum parallel quantity of 15 modules allows you to scale storage capacity by adding identical units.
Off‑grid applications
In remote villages or islands without reliable grid access, the battery stores daytime solar generation for night‑time use. The low voltage safety connection simplifies wiring, reducing installation time and risk of accidental short circuits.
Hybrid and on‑grid backup
For households connected to the national grid, the battery can smooth out power fluctuations and provide backup during outages. Smart solar and power (স্মার্ট সোলার অ্যান্ড পাওয়ার) offers professional integration services that configure the battery to work with existing inverters and net‑metering setups.
Choosing the right size for your needs
Estimating daily energy consumption is the first step. A typical Bangladeshi home uses between 5 kWh and 12 kWh per day, depending on appliance mix and air‑conditioning usage. The ZetaTech 10.24 kWh battery can cover most daily loads with a 90 % depth of discharge, leaving a safety margin for cloudy days.
If you anticipate higher demand or want longer autonomy, you can connect up to 15 batteries in parallel, reaching a combined storage of over 150 kWh. However, each additional unit adds weight and space requirements, so plan the installation area accordingly.
Space and mounting considerations
The compact dimensions allow floor‑mounted or wall‑mounted installations. Natural cooling works best with adequate airflow, so avoid enclosing the pack in airtight cabinets. The flexible installation design saves time and effort, a point emphasized by smart solar and power technicians.
Installation best practices
Professional installation is recommended to ensure safety and optimal performance. Follow these steps:
- Verify that the mounting surface can support the 90 kg weight.
- Maintain a clearance of at least 100 mm around the battery for airflow.
- Connect the battery using the low‑voltage safety connectors supplied by the manufacturer.
- Configure the CAN or RS485 communication port to match the inverter’s protocol.
- Perform a voltage check to confirm the pack is within the 43.2 V – 58 V range before energizing the system.
Smart solar and power provides site surveys, ensuring the location meets temperature and altitude limits (working altitude < 4000 m). Their technicians also handle the initial charge‑float voltage setting at 54 V to balance the cells.
Maintenance and longevity
LiFePO4 batteries require minimal maintenance compared with lead‑acid alternatives. Nevertheless, periodic checks extend life:
- Inspect terminals for corrosion and tighten connections.
- Monitor temperature; avoid exposing the pack to temperatures above 53 °C for extended periods.
- Run a full charge‑discharge cycle once every three months to keep the battery balanced.
- Use the built‑in CAN/RS485 interface to log performance data and detect any irregularities early.
The 5‑year warranty covers manufacturing defects and performance degradation beyond the guaranteed 80 % capacity at 6,000 cycles. Smart solar and power offers after‑sales support, including remote diagnostics via the communication port.
Common mistakes to avoid
Even experienced users can slip into habits that shorten battery life. Keep these points in mind:
- Do not repeatedly discharge below the 43.2 V cut‑off; this stresses the cells.
- Avoid charging at currents higher than the 100 A limit; the over‑current protection will trip at 20 A excess.
- Never store the battery in environments colder than –20 °C or hotter than +35 °C for long periods.
- Do not block ventilation; natural cooling relies on free airflow.
Why smart solar and power is the trusted partner
Smart solar and power (স্মার্ট সোলার অ্যান্ড পাওয়ার) has built a reputation for reliable solar solutions across Bangladesh. Their team offers free expert consultation, detailed site surveys, and professional installation that follows local regulations. After‑sales service includes routine checks, firmware updates for communication modules, and a responsive helpline.
When you choose the ZetaTech 51.2V 314AH battery through smart solar and power, you benefit from:
- Certified installation by trained engineers.
- Access to a network of authorized service centers.
- Comprehensive documentation and user manuals in both English and Bengali.
- Guidance on expanding storage with additional parallel modules.
Ready to start? get a free expert consultation from smart solar and power and let the team design a system that matches your energy goals.
Explore the full range of solar products we offer, from panels to inverters and storage solutions. explore our solar products.
Future‑proofing your home with renewable energy
Investing in a high‑quality lithium battery positions your household for the upcoming transition to greener grids. As Bangladesh expands its solar capacity, homes equipped with reliable storage will enjoy greater energy independence and resilience against grid interruptions.
The ZetaTech 51.2V 314AH battery, paired with smart solar and power’s expertise, delivers a clean, quiet, and safe power source that aligns with national renewable‑energy targets.
Related reading: আপনার বাড়ির জন্য সোলার প্যানেল এবং ব্যাটারি কিভাবে গণনা করবেন
Frequently Asked Questions
What is the recommended depth of discharge for the ZetaTech 51.2V 314AH battery?
The manufacturer recommends a 90 % depth of discharge, which balances usable capacity with long‑term cycle life.
Can I connect multiple ZetaTech batteries in parallel?
Yes, up to 15 units can be connected in parallel, allowing you to increase total storage while maintaining the same voltage range.
Is the ZetaTech battery suitable for hot and humid climates in Bangladesh?
The battery uses natural cooling and operates safely up to +53 °C, making it well‑suited for Bangladesh’s tropical conditions.
What communication ports are available for monitoring the battery?
The pack includes CAN and RS485 ports, enabling integration with most solar inverters and remote monitoring systems.
How long does the warranty last and what does it cover?
The battery comes with a 60‑month (5‑year) warranty covering manufacturing defects and performance below the guaranteed level after the specified cycle life.
