Jinko
Solar Panel
৳ 12,500.00
৳ 13,900.00
-10%
Mono Bifacial Panel

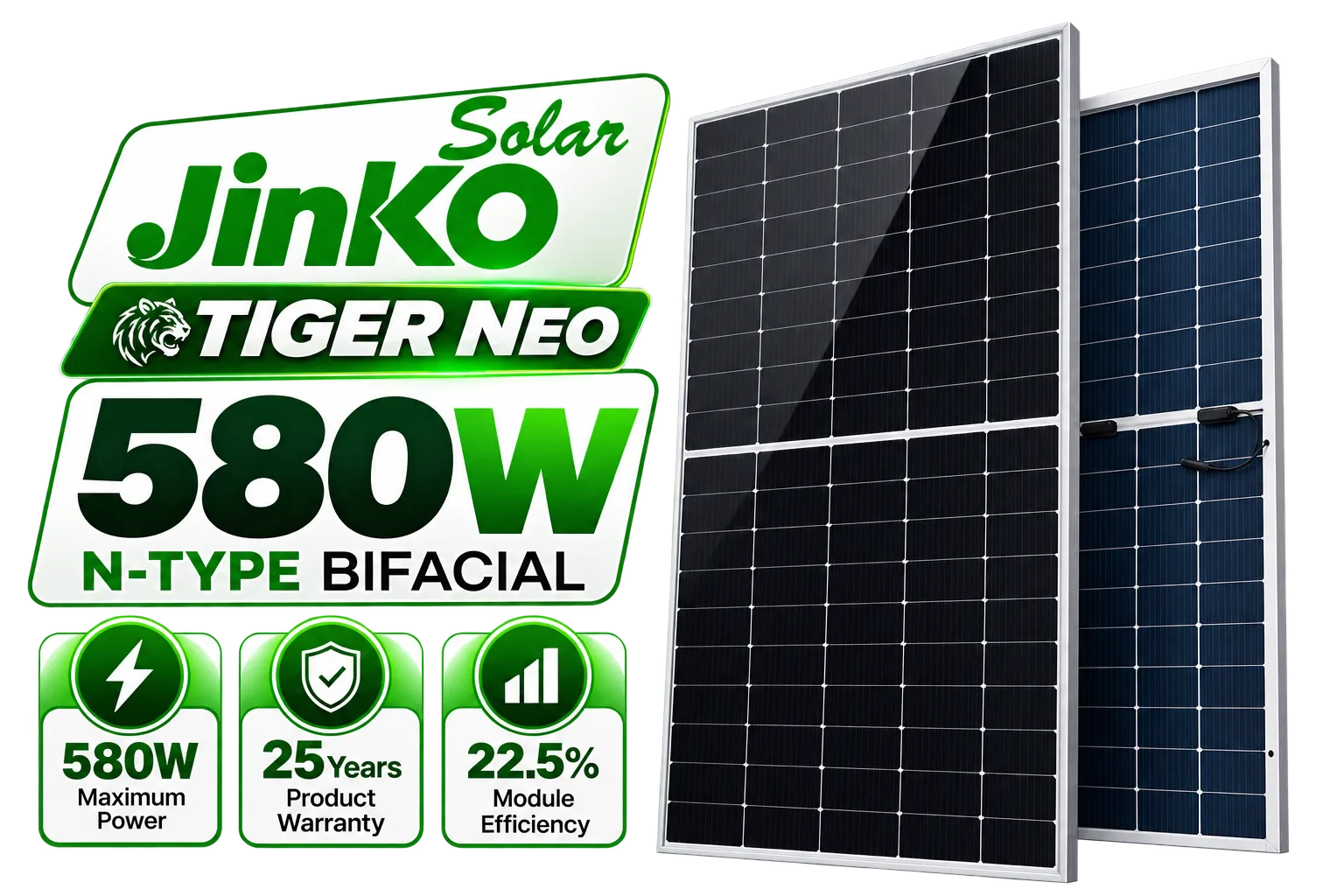

Jinko Solar Tiger Neo N Type Solar Panel 580W
Key Facts
| Category | Solar Panel |
|---|---|
| Brand | Jinko |
| Capacity | 580W |
| Warranty | 25 years |
Features
- Model & Series: JKM585N-72HL4-V | Jinko Solar Tiger Neo | N-Type Monocrystalline
- Power Output: 580W | Power Tolerance: Positive | Cell Type: N-Type Mono-Crystalline
- Cell Configuration: 2 × 72 Monocrystalline Cells | Dual Glass Construction
- Build: 2.0mm Anti-Reflection Front Glass | 2.0mm Heat-Strengthened Back Glass | Anodized Aluminium Alloy Frame | IP68 Junction Box | Cable: TUV 4.0mm²
- Dimensions & Weight: 2278 × 1134 × 30 mm | 28 kg (±3%)
- Certifications: CE / TUV / ISO / CQC
Product Details
Model NO.
Tiger Neo N-type JKM585N-72HL4-V
Material
Monocrystalline Silicon
Product Power
Positive Tolerance
Cell Type
N Type Mono-Crystalline
Junction Box
IP68 Rated
Front Glass
2.0mm, Anti-Reflection Coating
Back Glass
2.0mm, Heat Strengthened Glass
Frame Color
Anodized Aluminium Alloy
Certificate
CE / TUV / ISO/CQC
Product Name
Tiger Neo N-Type 72hl4-Bdv 570-580 Watt
Output Cables
4.0mm2, 400mm, 200mm
Weight
32kg
Transport Package
Carton with Pallet
Specification
2278*1134*30mm
Trademark
Jinko solar
Origin
Nanjing, China
HS Code
8541402000
Production Capacity
50000/Month
MECHANICAL SPECIFICATION | |
Module Dimensions | 2278mm x 1134mm x 30mm |
Weight | 28kg±3% |
Cell | 2 x 72 monocrystalline cells |
Junction Box | IP68 Rated |
Cable | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length |
