Jinko
Solar Panel
৳ 15,500.00
Mono Bifacial Panel

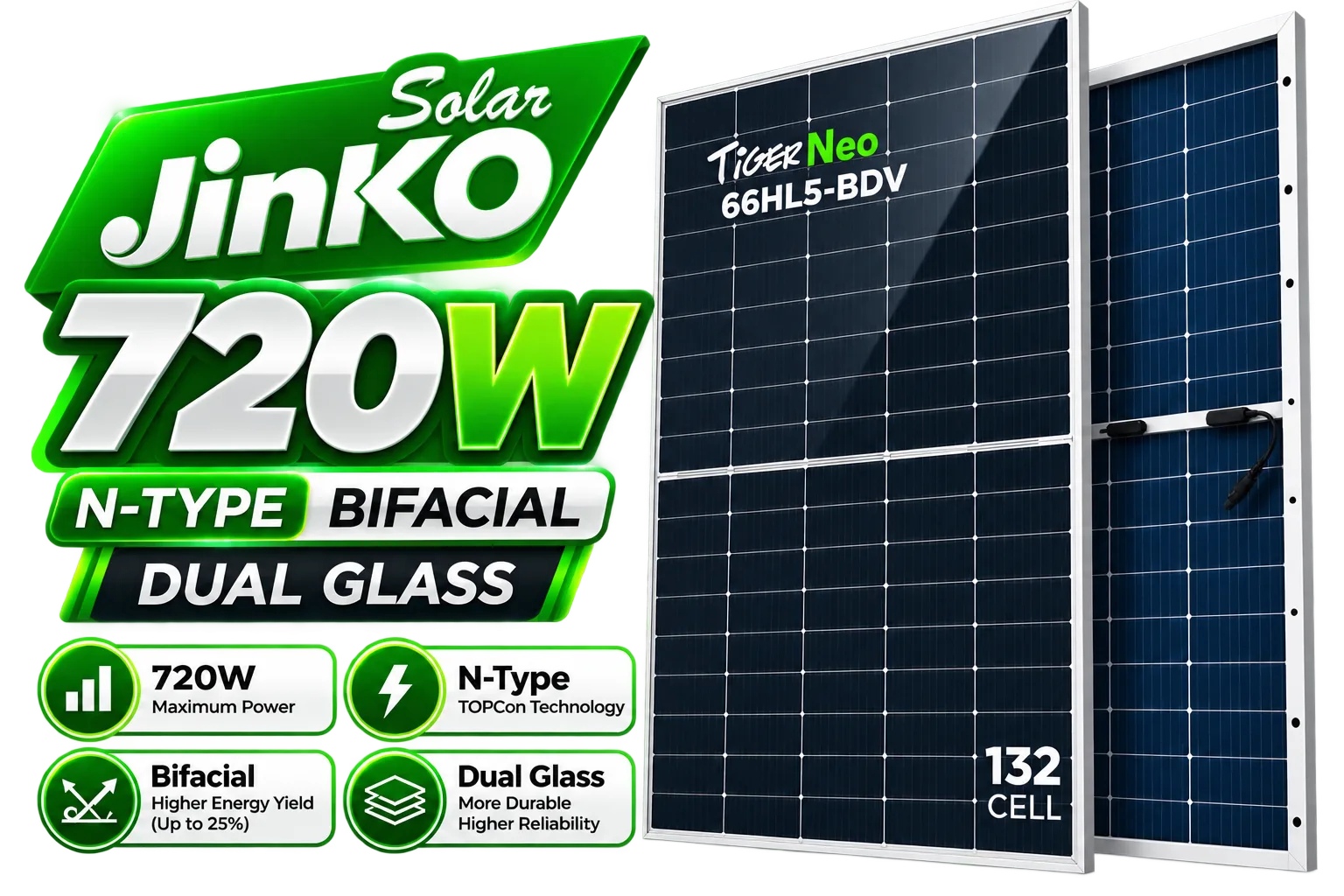

Jinko 720W Tiger Neo Bifacial Solar Panel | N-Type Dual Glass Module (66HL5-BDV) | High-Efficiency TOPCon
Key Facts
| Category | Solar Panel |
|---|---|
| Brand | Jinko |
| Capacity | 720W |
| Warranty | 25 years |
Features
- High-Efficiency N-Type Technology: Utilizes N-type TOPCon and HOT 3.0 technologies to deliver superior reliability and an impressive module efficiency of 23.34% under Standard Test Conditions (STC).
- Bifacial Dual-Sided Power Generation: Captures light from both the front and backside of the panel, increasing overall power yield. Under BNPI conditions (front 1000W/m², rear 135W/m²), the 720W module achieves a maximum power (Pmax) of 795W.
- Advanced Light Trapping: Incorporates Super Multi-busbar (SMBB) technology to improve light trapping and optimize current collection, leading to enhanced module output.
- Anti-PID Guarantee: Optimized cell production and rigorous material control minimize the risk of Potential Induced Degradation (PID) phenomena.
- Extreme Mechanical Durability: Certified to withstand severe weather, supporting a maximum static test load of 5400 Pa on the front and 2400 Pa on the rear.
- Industry-Leading Construction: Features an IP68-rated junction box, a sturdy anodized aluminium alloy frame, and 2.0 mm heat-strengthened back glass paired with 2.0 mm anti-reflection coated front glass.
Product Details
- Module Series: TIGER Neo (Model: 66HL5-BDV)[cite: 5]
- Cell Type: N-type Mono-crystalline (132 cells)
- Maximum Power (Pmax): 720 W
- Maximum Power Voltage (Vmp): 40.89 V
- Maximum Power Current (Imp): 17.61 A
- Open-circuit Voltage (Voc): 49.04 V
- Short-circuit Current (Isc): 18.67 A
- Operating Temperature Range: -40°C to +70°C
- Maximum System Voltage: 1500 VDC (IEC)
- Dimensions: 2384 x 1303 x 33 mm
- Weight: 37.5 kg
