Rahimafrooz
Portable Inverter
৳ 178,000.00
৳ 190,900.00
-7%

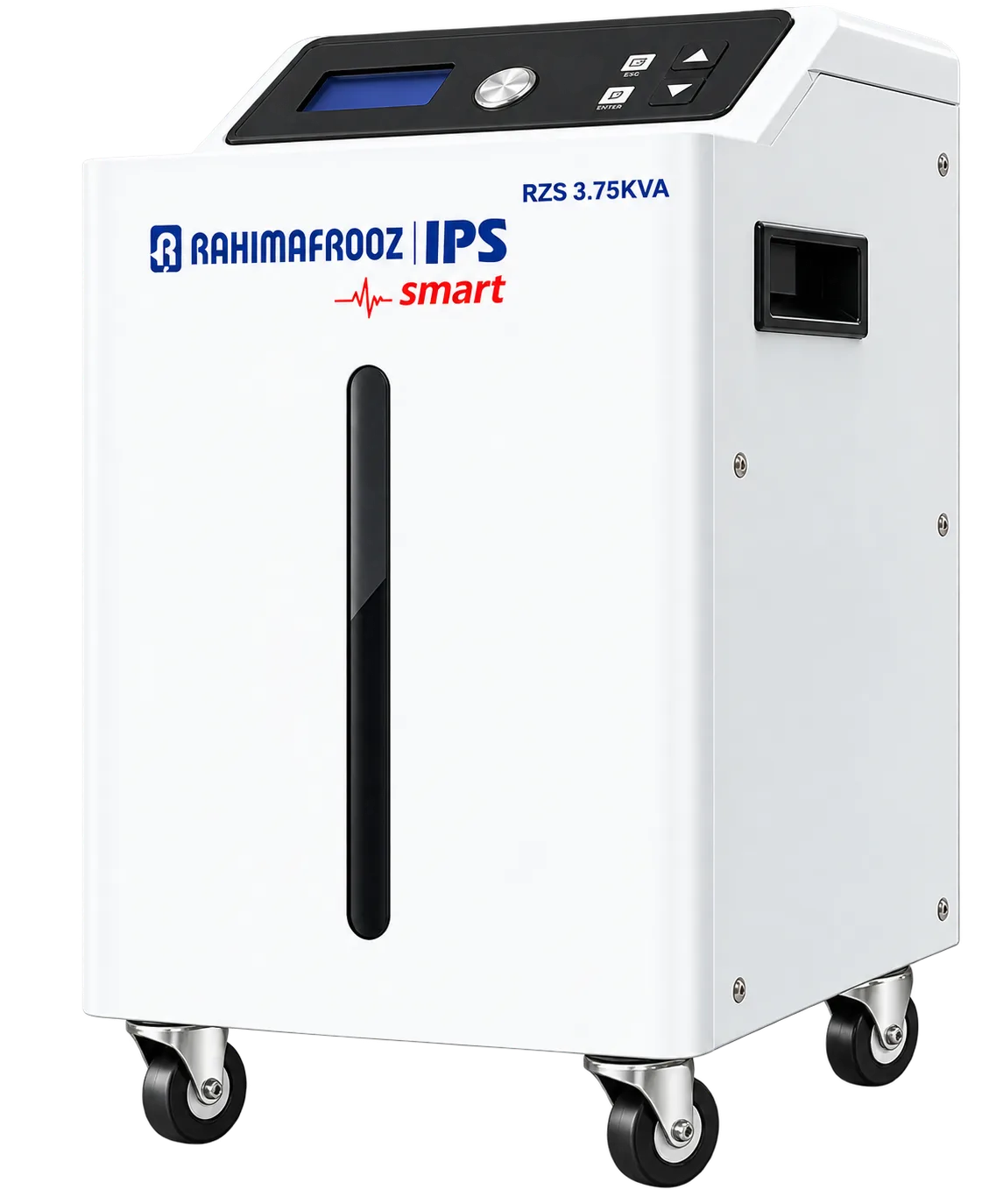

Rahimafrooz Smart IPS (RZS 3.75KVA)
The Rahimafrooz RZS-3.75KVA is a premium, hybrid smart solar IPS inverter system designed for homes, offices, and commercial spaces in Bangladesh. It breaks away from traditional backup systems by combining a heavy-duty inverter, an advanced MPPT solar charge controller, and a built-in lithium battery into a single intelligent energy hub.
Key Facts
| Category | Portable Inverter |
|---|---|
| Brand | Rahimafrooz |
| Capacity | 3750VA - 3000W |
| Warranty | 36 months |
| Life Cycle | 4000 cycles |
Features
- • Power Output Capacity: 3.75 KVA / 3000 Watts.
- • Waveform: Pure Sine Wave (provides clean, stable grid-like power that protects delicate electronics like laptops, smart TVs, and medical equipment).
- • Built-in Battery: 200Ah at 25.6V (approx. 5.12 kWh) Lithium Iron Phosphate (LiFePO4) battery equipped with an advanced Battery Management System (BMS). It boasts a lifespan of over 10 years (rated for 4,000 cycles at 70% Depth of Discharge).
- • Solar Integration: Integrated MPPT (Maximum Power Point Tracking) controller supporting up to a 4000W–5000W solar panel array, tracking voltage between 40V and 450V.
- • Backup Runtime: Up to 2 hours at typical full system load capacities.
- • Smart Monitoring: Wi-Fi compatibility allows users to monitor real-time battery health, power usage, and solar harvest via a dedicated mobile app.
Product Details
Product Details:
- Display: 2.8" LCD
- Output Power: 3000W
- Backup Time: Up to 2H +
- Transfer Time: 20ms/ 10ms (UPS mode)
- Battery Volt/Ah: 25.6V 200Ah
- Type of Battery: LiFePO4 Battery
- Battery Life Cycle: 4000 Cycle @ 70% DOD
- Types of BMS: Hardware-protection
- BMS Ampere: 150A
- No Load Output Voltage: 220V
- Full Load Output Voltage: 220V±5%
- Overload Ability: 1min @102%-110% Load / 10s @110%-130% Load
- Higher Cutoff Voltage: 290V
- Lower Cutoff Voltage: 90V
- Battery Charging Time: Up to 2H
- Maximum Solar Panel Capacity: 5000W
- Maximum Input Voltage (Voc): 500V
- Charging Time: Up to 2H
- Maximum Charging Current: 100A
- MPPT Tracking Range: 40-450V
- Operating Temperature Range: 0-40°C
- Noise Emission For Inverter: ≤50db
- Protection Rating: IP20
- Protection: AC Input/Output Breakers | Battery Switch | Earth Leakage Circuit Breaker
- Wifi Compatibility: Wifi Dongle Required
