ZetaTech
Lithium Battery
৳ 125,000.00
৳ 135,000.00
-7%

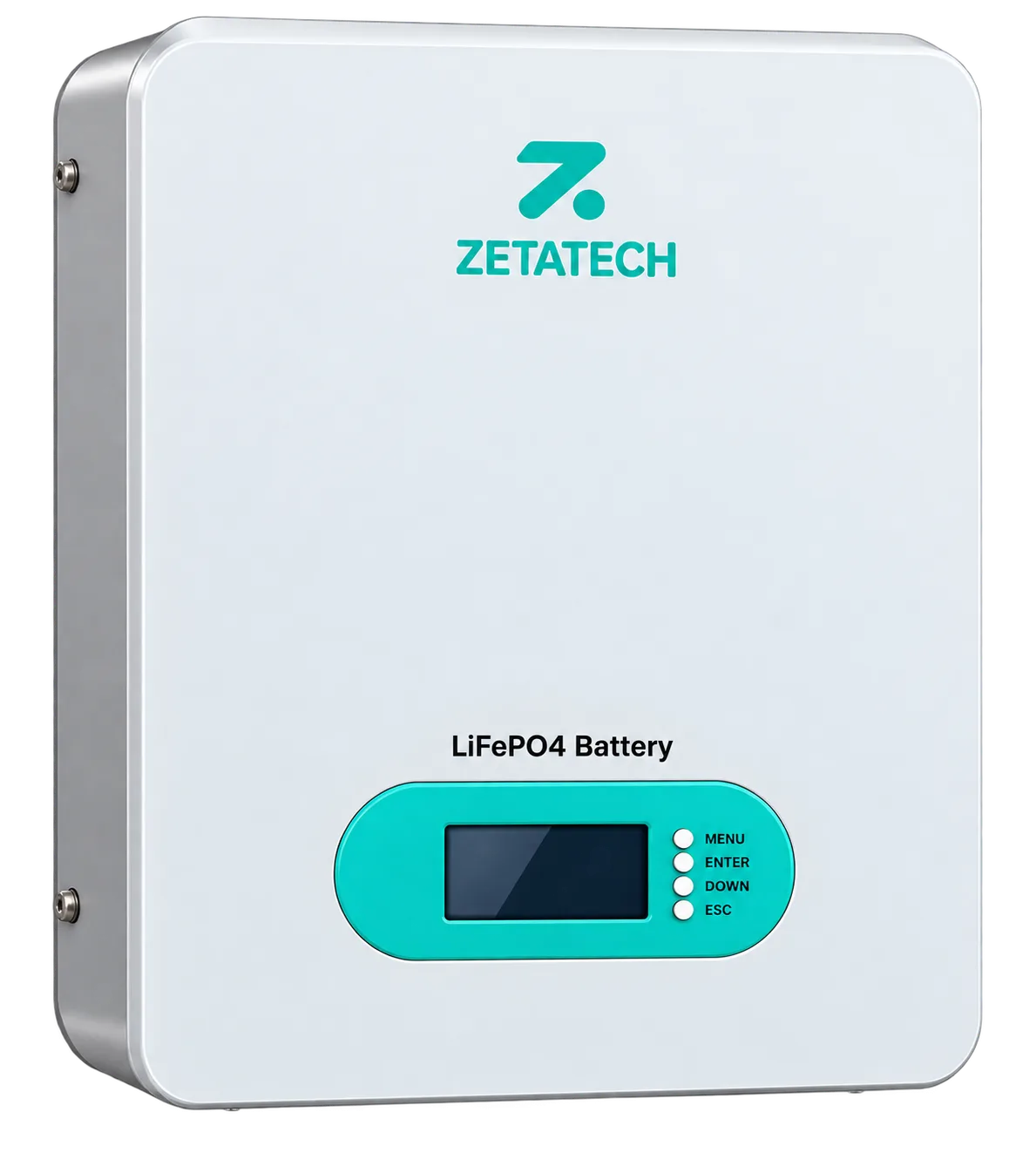

Lithium Battery with Prismatic Cell
- Flexible installation, saving the time & effort - Low voltage safety connection - 5 years standard warranty - Superior LiFePO4 safety performance - Max. 16 modules parallel
Key Facts
| Category | Lithium Battery |
|---|---|
| Brand | ZetaTech |
| Capacity | 51.2V 100AH |
| Warranty | 60 months |
| Life Cycle | 50000 cycles |
Features
- Flexible installation, saving the time & effort
- Low voltage safety connection
- 5 years standard warranty
- Superior LiFePO4 safety performance
- Max. 16 modules parallel
Product Details
- Battery Type
LFP (LiFePO4)
- Nominal Voltage (V)
51.2
- Nominal Capacity (Ah)
100
- Nominal Energy (kWh)
5.12
- Voltage Range (V)
43.2 ~ 58
- Charge Float Voltage (V)
54
- Charge Cut-off Voltage
Overall voltage≥58V or single≥3.63V
- Discharge Cut-off Voltage
Overall voltage≤43.2V or single≤2.7V
- Maximum Charge Current (A)
50
- Maximum Discharge Current (A)
100
- Charge Over-Current Limit (A)
≤20
- Cycle Life
6,000 Cycles (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
- General Parameters
- Thermal Management
Natural Cooling
- Recommend Depth of Discharge
90%
- Max. Parallel Quantity
1 ~ 15
- Charge Temperature Range (℃)
2 ~ 53
- Discharge Temperature Range (℃)
-18 ~ +53
- Storage Temperature Range (℃)
-20 ~ +35
- Maximum Working Altitude (m)
＜ 4000
- Dimensions [W x L x H] (mm)
600 x 423 x 155（±1.2)
- Battery Pack Weight (kg)
55 ± 5
- IP Rating
IP20
- Communication Port
CAN / RS485
- Certification Standard
CE / IEC 62619 / UN38.3
